Lead Edge Printer Slotter Die Cutter Machine: Features & Benefits

In the fast-growing corrugated packaging industry, production efficiency, printing accuracy, and stable die-cutting quality determine the core competitiveness of carton factories. Among all packaging processing equipment, the lead edge printer slotter die cutter machine has become the most popular automated production line for medium and large carton manufacturers worldwide. Different from traditional rear-feeding carton machines, the lead edge feeding design achieves precise paper positioning, zero deviation printing and die-cutting, and continuous high-speed operation, effectively solving the problems of low yield, unstable finished product quality and low production capacity of traditional carton processing equipment.

This article will comprehensively introduce the working principle, core advantages, key configurations, application scenarios and maintenance skills of the lead edge printer slotter die cutter machine, helping packaging factory owners, procurement engineers and production managers quickly understand why this machine is the preferred equipment for modern carton mass production, while optimizing Google search inclusion for core industry keywords.

What Is a Lead Edge Printer Slotter Die Cutter Machine?

A lead edge printer slotter die cutter machine is an integrated multi-functional corrugated box processing equipment that integrates automatic paper feeding, flexo printing, slotting, scoring, rotary die-cutting and stacking. It is specially designed for 3-layer, 5-layer and 7-layer corrugated cardboard processing, and is widely used in food packaging, logistics cartons, electronic product packaging, daily necessities packaging and other fields .

The core feature that distinguishes it from conventional printer slotter die cutters is the lead edge feeding system. The machine adopts front-edge positioning and servo automatic paper feeding technology, which realizes accurate positioning of each cardboard sheet through adjustable air volume control and servo drive. It completely avoids the feeding deviation and cardboard shaking problems of traditional side-feeding equipment, laying a foundation for high-precision printing and die-cutting .

This all-in-one machine realizes one-time forming of carton processing. It can complete pattern printing, crease scoring, corner slotting and shape die-cutting in one production cycle, greatly reducing manual intervention and process transfer links, and improving the overall production efficiency of the carton production line .

Working Principle of Lead Edge Printer Slotter Die Cutter Machine

The operation flow of the lead edge printer slotter die cutter machine is automated and streamlined, with stable and orderly operation of each module. The complete working principle is divided into four core links:

1. Lead Edge Automatic Paper Feeding

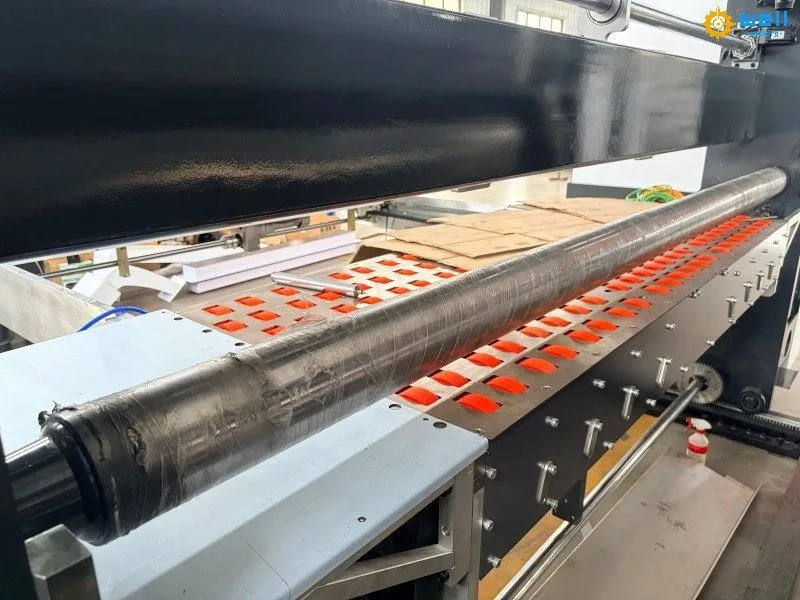

Equipped with an independent servo drive lead edge feeding system and intelligent air suction paper separation device, the equipment automatically separates and conveys corrugated cardboard. The front-edge positioning technology ensures that each sheet of cardboard enters the processing unit with a consistent benchmark position. The air volume is adjustable intelligently, which can adapt to different thicknesses of corrugated cardboard, effectively preventing double feeding, missing feeding and cardboard offset . Compared with traditional feeding methods, the lead edge feeding mode has higher positioning accuracy and stronger stability in high-speed operation.

2. High-Precision Flexo Printing

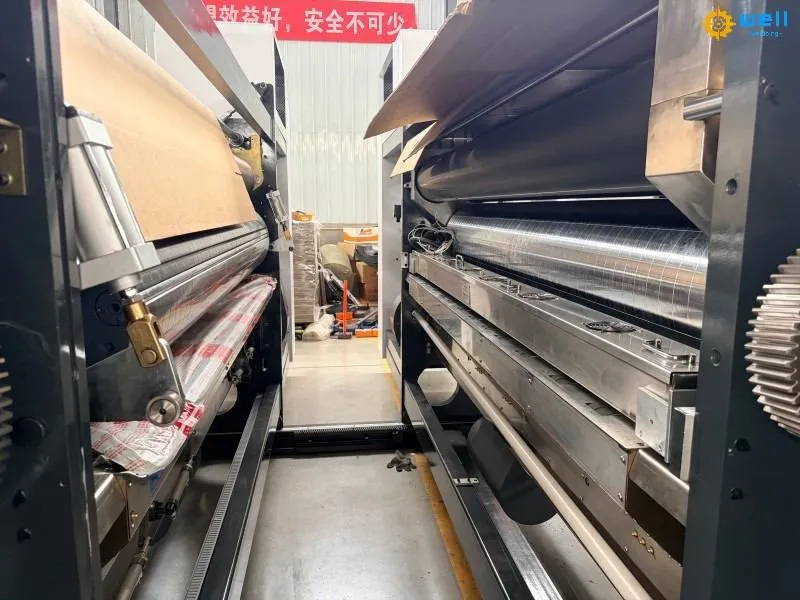

The printing unit adopts high-definition flexographic printing technology, supporting 1-6 color printing. Equipped with imported rubber rollers and precision anilox rollers, the ink layer is uniform, the printing pattern is clear, and the color registration error is controlled within ±0.1mm. The whole printing process adopts PLC intelligent phase adjustment, with automatic zeroing and one-key color registration functions. It can adjust parameters in real time during operation without stopping the machine, which greatly saves debugging time and improves printing qualification rate .

3. Intelligent Slotting & Scoring

The slotting unit adopts planetary gear structure and full digital electric adjustment technology. The 360-degree phase adjustment and synchronous lateral movement adjustment can accurately complete carton creasing, slotting and trimming. The single-axis dual-knife design ensures smooth slotting without burrs and neat creases, avoiding cardboard cracking. The equipment supports one-key input of carton size parameters through the touch screen, realizing automatic adjustment of slotting gap and creasing pressure, which is suitable for cartons of different specifications .

4. Rotary Die-Cutting & Finishing

The die-cutting unit uses high-strength thickened steel die rollers and hard chrome plating technology, with strong pressure resistance and long service life. Equipped with an automatic rubber pad grinding device, the rubber pad can be repeatedly polished and used for 3 times, greatly reducing the replacement cost of wearing parts . The air cylinder automatic separation device can separate the die roller and rubber roller when die-cutting is not required, effectively extending the service life of accessories. After die-cutting, the finished cartons are automatically stacked and output, realizing fully automated unmanned production .

Core Advantages of Lead Edge Printer Slotter Die Cutter Machine

In the fiercely competitive packaging machinery market, the lead edge printer slotter die cutter machine has become the mainstream choice for carton factory upgrading due to its obvious advantages in efficiency, accuracy, cost and stability. The core advantages are summarized as follows:

1. Higher Feeding & Processing Accuracy

The lead edge front positioning feeding mode takes the cardboard front edge as the unified processing benchmark, completely solving the positioning error caused by side feeding. The overall printing and die-cutting accuracy is far higher than traditional equipment, with a finished product qualification rate of over 99%. It can meet the high-precision printing and size requirements of high-end customized packaging boxes .

2. Ultra-High Production Efficiency

The full-automatic integrated design realizes one-time forming of printing, slotting and die-cutting. The maximum operating speed can reach 180 sheets per minute. The intelligent one-key debugging function shortens the product switching time from tens of minutes to several minutes, which is very suitable for mass production and multi-batch small-order flexible production, greatly improving factory output .

3. Low Operation & Maintenance Cost

The equipment adopts frequency conversion energy-saving control system, which reduces power consumption by more than 20% compared with traditional equipment. The wearing parts such as rubber pads and cutting dies have a long service life with the automatic protection and grinding device. The modular structure design makes daily maintenance and parts replacement more convenient, reducing later operation and maintenance costs for enterprises .

4. Strong Compatibility & Wide Adaptability

This machine is compatible with 3-layer, 5-layer and 7-layer corrugated cardboard, and supports the production of various carton types such as regular cartons, special-shaped cartons, and packaging boxes with holes. It can be widely used in food, beverage, electronics, logistics, furniture and other packaging industries, with strong market adaptability .

5. Intelligent & Humanized Operation

Equipped with a large color touch screen PLC control system, all production parameters such as color registration, slotting position and die-cutting pressure are digitally displayed and adjusted. It supports automatic reset, automatic zeroing and fault self-detection functions. The operation is simple and intuitive, reducing the dependence on senior operators and lowering the threshold of enterprise employment .

Key Technical Configuration Parameters

The excellent performance of the lead edge printer slotter die cutter machine is derived from high-quality core configurations. The mainstream standard parameters of the industry are as follows, which can help customers quickly evaluate equipment performance:

• Applicable cardboard: 3/5/7-layer corrugated cardboard

• Printing colors: 1-6 colors optional

• Max working speed: 180 pieces/min

• Positioning accuracy: ±0.1mm color registration error

• Die roller material: High-quality thickened steel, hard chrome plated

• Rubber pad: Imported wear-resistant polyurethane material, reusable after grinding

• Control system: PLC full digital intelligent control, touch screen operation

• Feeding mode: Lead edge servo automatic air suction feeding

• Energy saving mode: Frequency conversion speed regulation, automatic power saving

•


Application Scenarios of Lead Edge Printer Slotter Die Cutter Machine

As a versatile and high-efficiency carton processing equipment, the lead edge printer slotter die cutter machine covers almost all corrugated box production scenarios:

1. Logistics & Express Packaging: Mass production of standard express cartons, turnover boxes, and logistics packaging boxes, meeting high-volume and fast delivery needs.

2. Food & Beverage Packaging: High-precision printing of food cartons, beverage gift boxes, and snack packaging boxes, ensuring clear patterns and beautiful appearance.

3. Electronic Product Packaging: Precision die-cutting of electronic product outer packaging, anti-collision cartons and customized shaped cartons to meet high-precision size requirements.

4. Daily Necessities & Furniture Packaging: Processing of large and medium-sized cartons for daily necessities, furniture and home appliances, with strong adaptability to cardboard thickness.

5. Customized Packaging Production: Flexible switching of multiple specifications of products, suitable for personalized customized carton orders in small batches and multiple varieties.
